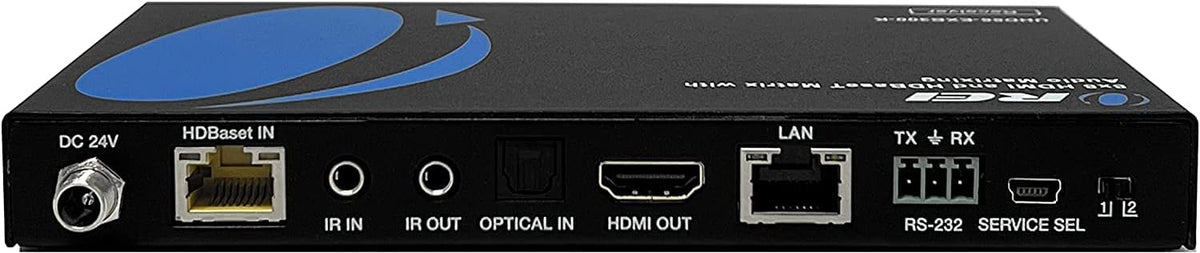

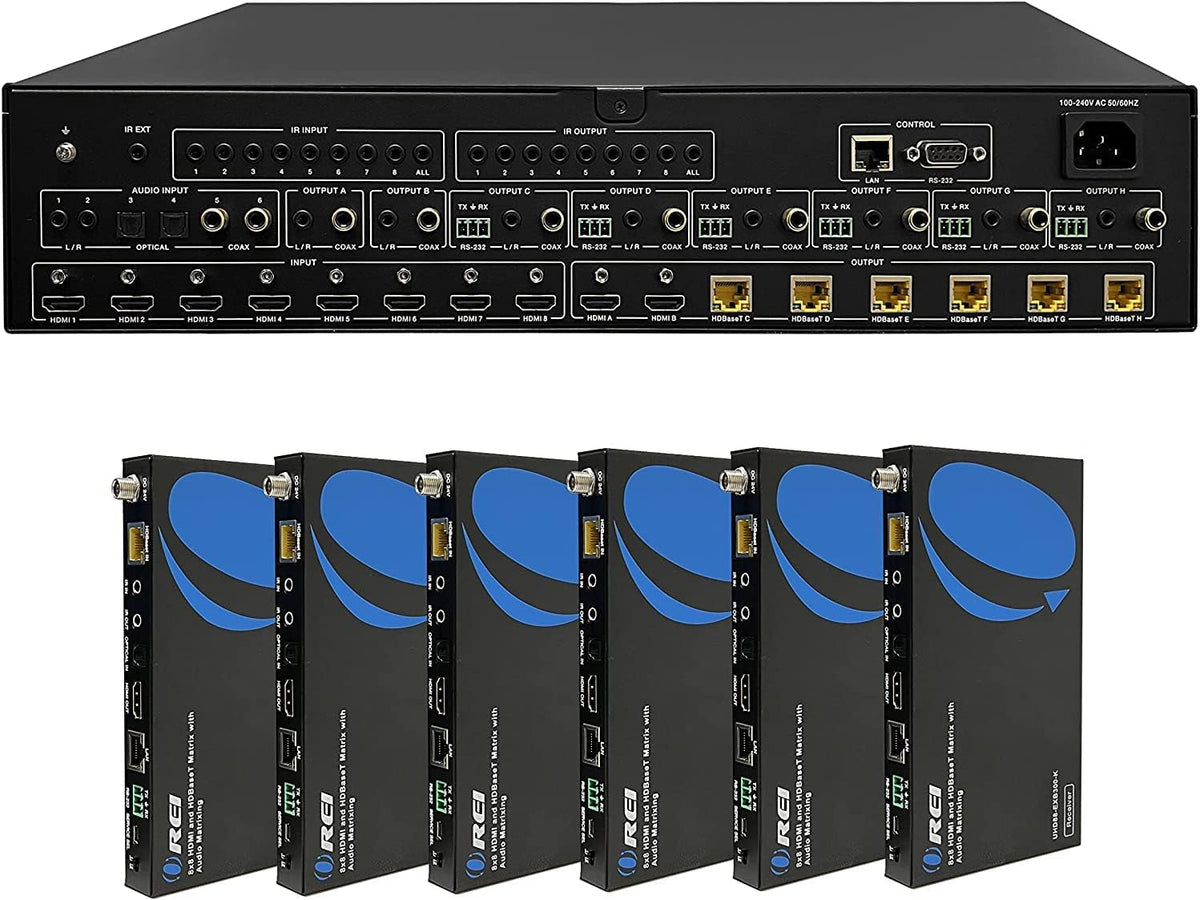

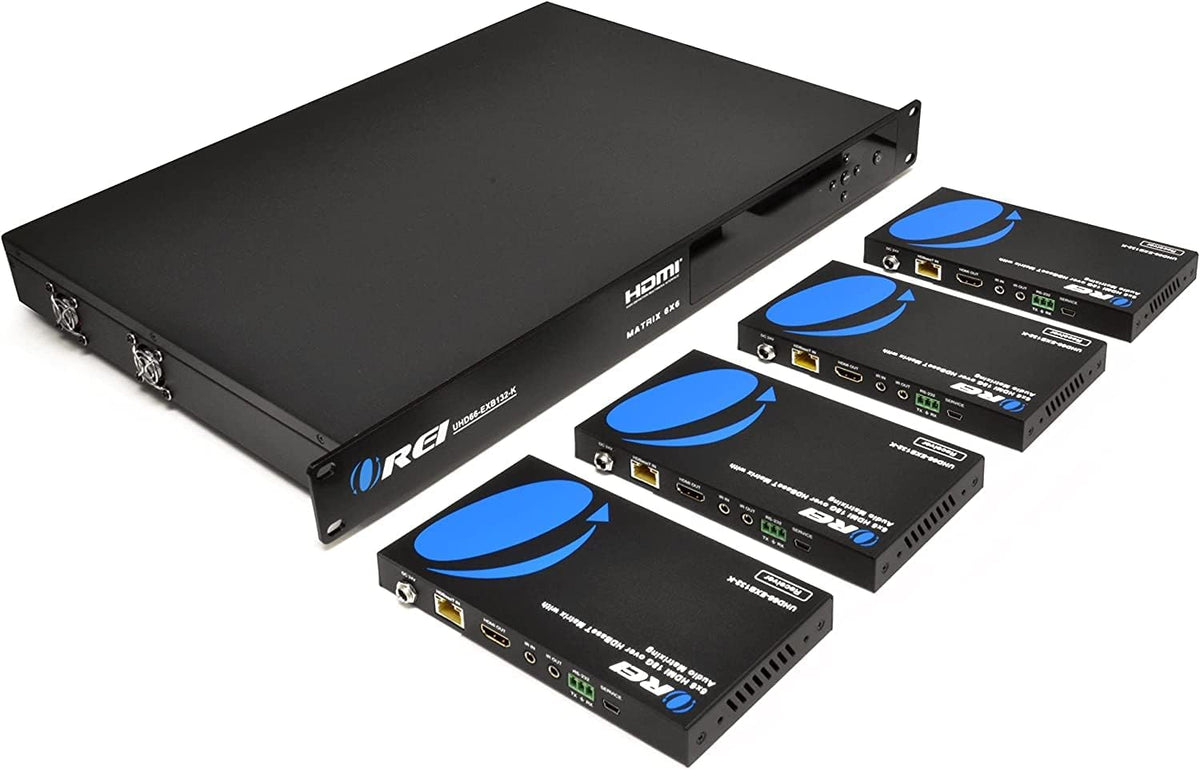

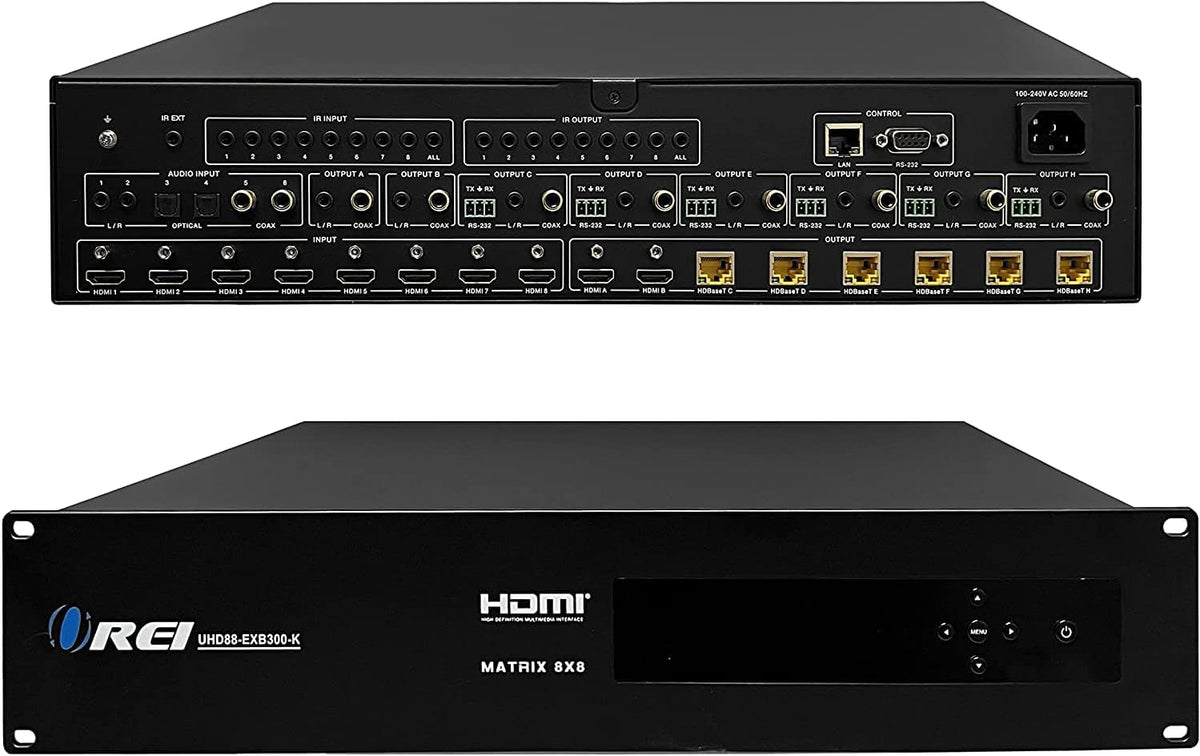

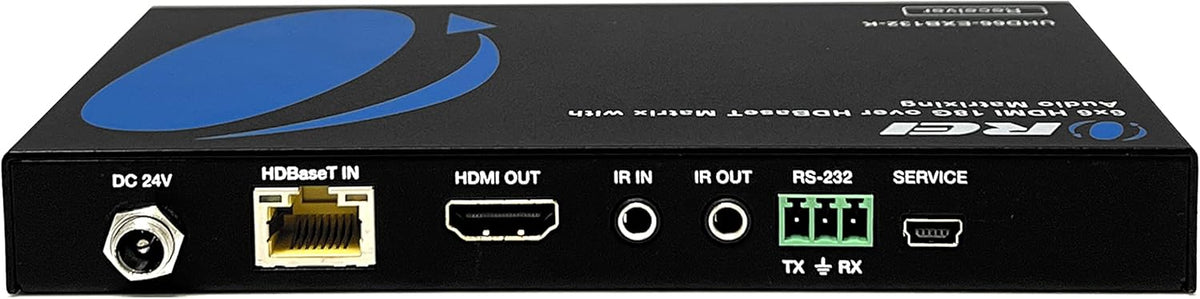

4K HDMI Matrix Switcher Extender with HDR, CEC & IR Control, RS-232, 2 Loop Out 4 Receivers V872438
4K HDMI Matrix Switcher Extender with HDR, CEC & IR Control, RS-232, 2 Loop Out 4 Receivers V872438
Full Ultra HD Support - 4k@60/50Hz 12 bit, 4k@60Hz, 4k@30Hz 24 bit, 1080p@60/50Hz, 720p@60/50Hz, 576p@60/50Hz, 480p@60Hz. Supports all digital audio compatibility such as LPCM, DTS HD, and dolby truehd. HDMI 2.0 feature supports 4k@50/60hz YUV 4:2:0. Latest HDCP 2.2/1.4 compliant. Supports RS-232 function, 4 channel bypass. Full EDID management. Support wideband IR( 30-60kh) matrix system. IR transport channel can be forwards and backward. HDR10 Dolby Vision ARC CEC.
LAN OUT & Audio Matrix/Mixer - This feature allows you to access your Home Network / Internet remotely at the receiver end. 3.5 Analog Audio, 2x Coxial Audio and 2x Optical Audio. Audio Ouput - Six Channels Audio Output Ports. A good quality CAT6/7 STP shielded cable is essential in delivering quality content. CAT6 is recommended for better performance. Avoid using signal converters/adapters. Supports POE (Power Over Cable) function, so only power adapter is required at the HDMI transmitter end
HDMI matrix switcher uses HDBaseT technology for Uncompressed signal and for zero latency. - Ideal for 4K blu-ray players, game consoles, media players, satellite receivers, computers, laptops, cable boxes and other hdmi sources. Heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation. Compact in size for easy plug & play installation. Matrix can be controlled via the front panel, IR, RS-232, Telnet and Web GUI.
Includes: 1x hdmi extender matrix, 6x hdmi receivers, 1x power adapter, 10x ir-receiver cables, 9x ir-blaster cables, 1x hdmi matrix remote, 12x mounting ears, 1x rs-232 cable, 1x manual, 16x phoenix connectors, 1x instructions manual, 1 year manufacturer's warranty
This Matrix Extender has 8 Inputs & 6 Outputs Over CAT6/7 LAN Cable upto 300 Feet plus additional 2 HDMI Out Source at Local Location. Perfect Professional Distribution Product. Ideal for 4K Blu Ray Players, Game Consoles, Media Players, Satellite Receivers, Computers, Laptops and Other Sources. Full Ultra HD Support - 4k@60/50Hz 12 bit, 4k@60Hz, 4k@30Hz 24 bit, 1080p@60/50Hz, 720p@60/50Hz, 576p@60/50Hz, 480p@60Hz. Supports all digital audio compatibility such as LPCM, DTS HD, and Dolby trueHD. HDMI 2.0 feature Supports 4K@50/60Hz YUV420. Latest HDCP 2.2/1.4 compliant. Supports RS-232 Function, 4 Channel Bypass. Full EDID Management. Support wideband IR( 30-60Kh) HDMI matrix system. IR Transport Channel Can be Forwards and Backward. HDBaseT Technology - Uncompressed Signal for Zero Latency. A good quality CAT6/7 STP shielded cable is essential in delivering quality content. CAT6 is recommended for better Performance. Avoid using signal converters/adapters. Supports POE (Power Over Cable Function), so only power adapter is required at the HDMI Transmitter end
